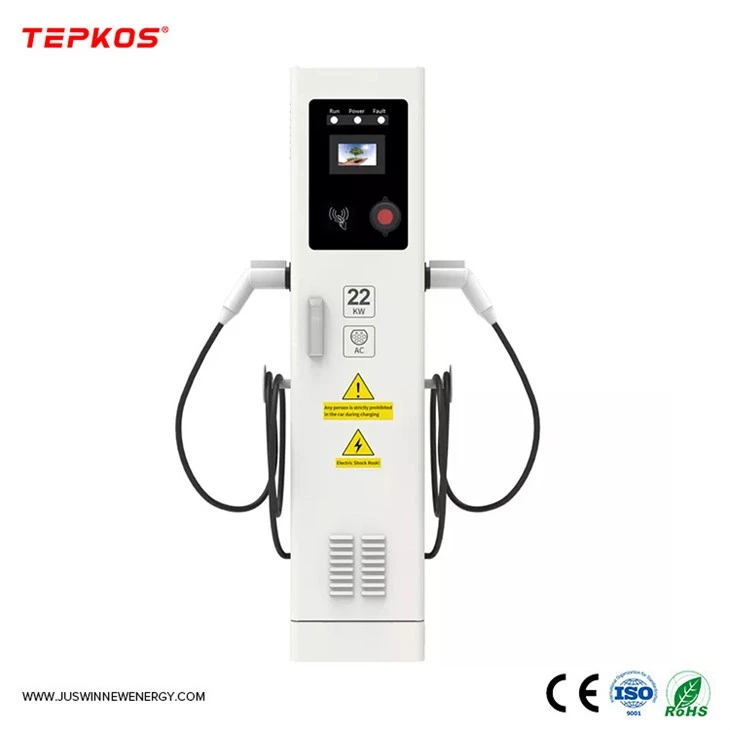

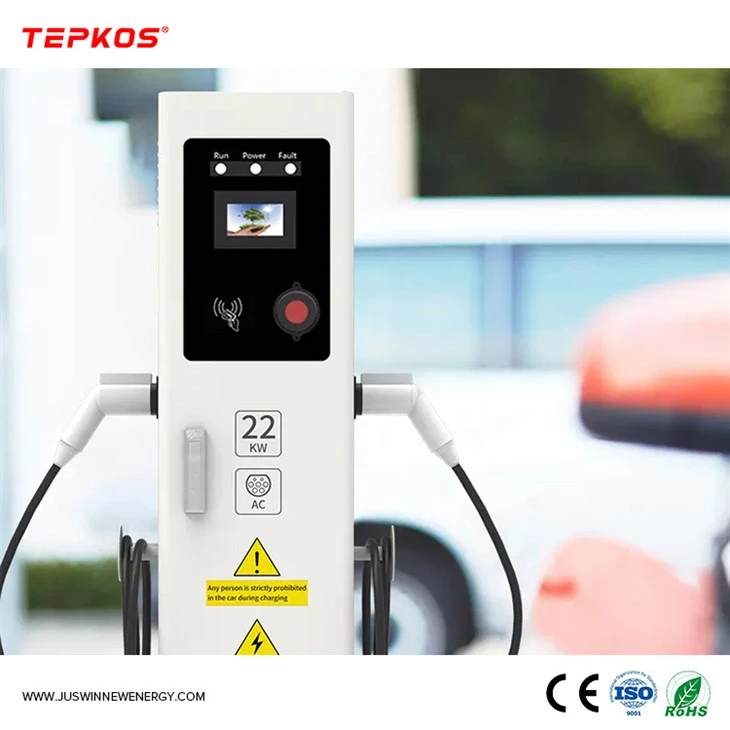

Tsheb roj teeb Charging Point

Raws li lub ntiaj teb txav mus rau lub zog huv, ntau thiab ntau tus neeg xaiv lub tsheb hluav taws xob raws li lawv txoj kev nyiam kev thauj mus los. Ib qho ntawm cov teeb meem tseem ceeb rau cov tswv tsheb hluav taws xob, txawm li cas los xij, yog khaws lawv lub tsheb them thaum lawv tawm thiab txog. Qhov no yog qhov chaw tsheb roj teeb them cov ntsiab lus tuaj.

Lub tsheb roj teeb them taw tes yog qhov tseem ceeb ntawm qhov hluav taws xob hluav taws xob uas tsim tshwj xeeb rau kev them cov roj teeb hluav taws xob tsheb. Cov ntsiab lus them nyiaj no feem ntau pom nyob rau hauv cov chaw pej xeem xws li chaw nres tsheb, khw khw, thiab tshav dav hlau. Qee lub tuam txhab tseem tab tom txhim kho cov ntsiab lus them nqi hauv cov tsev ua haujlwm kom cov neeg ua haujlwm tuaj yeem them lawv lub tsheb thaum lawv ua haujlwm.

Lub tsheb roj teeb them taw tes yog cov khoom lag luam hloov pauv uas muab cov kev paub zoo sib xws rau cov tswv tsheb hluav taws xob (EV). Txoj kev them nqi ib txwm ua tau qeeb, cumbersome, thiab tsis yooj yim, tab sis nrog lub tsheb roj teeb them taw tes, cov neeg tsav tsheb tuaj yeem them lawv cov EVs hauv ib feeb. Cov khoom yog tsim los kom yooj yim rau siv thiab siv tau, nrog rau ntau qhov chaw nyob thoob plaws lub teb chaws kom ceev thiab yooj yim them thaum mus.

TSIS MUAJ	Tsis muaj	Tsheb roj teeb Charging Point
Kev Xav Tau
1	EV Charger Hom	AC
2	Charger Capacity	7 kWm	11 kWm		22 kWm
3	Khoom Model NO.	ENC-ACL007A ANSI-ACL007A	ENC-ACL011A ANSI-ACL011A		ENC-ACL022A/B ANSI-ACL022B
4	Mounting	Hauv av-mounted
Input Requirements
5	AC Supply System	Ib-theem, 3 Hlau AC system	Ib-theem, 3 Hlau AC system (ANSI) Peb-theem, 5 Hlau AC system (ENC)
6	Nominal input voltage	AC220V ± 15% (ENC) AC240V ± 15% (ANSI)	AC380V ± 15% (ENC) AC240V ± 15% (ANSI)		AC380V ± 15% (ENC) AC240V ± 15% (ANSI)
7	Input zaus	50 ± 3 Hz
Environmental Requirements
8	Ambient Kub Ntau yam	-25 rau 55 degree
9	Ambient Humidity	5 rau 95 feem pua
10	Cia Kub	-40 rau 70 degree
Mechanical Requirements
11	Kev ntsuas IP	Tus IP 54
12	Txias	Ntuj Txias		Cua txias
Cov kev xav tau
13	Number of Outputs	1
14	Hom Txhua Qhov Tso Tawm	AC220V ± 15% (ENC) AC240V ± 15% (ANSI)	AC380V ± 15% (ENC) AC240V ± 15% (ANSI)		AC380V ± 15%.
15	Single Output Max. Tam sim no	32 amp ua	16 amp / 50 amp		32 Amp / 16 Amp (ENC) 50 Amp (ANSI)
User Interface & Display Requirements
16	Zaub & Kov-Screen Loj	4.3 nti kov npo
17	User Authentication	Mobile Application lossis User Interface / QR Code / RFID Card / Password ID nkag mus
18	Cov ntaub ntawv ntsuas	Cov Khoom Siv Khoom Siv
Kev Sib Txuas Lus
19	Kev sib txuas lus ntawm EVSE thiab Central Server	OCPP 1.6J raws tu qauv (yeem)
20	Interface ntawm Charger thiab CMS	Ethernet / 3G / 4G / WIFI (Yeem)
Kev Tiv Thaiv & Kev Tiv Thaiv Kev Nyab Xeeb
21	Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772, thiab lwm yam.
22	Safety Parameters	Tshaj tam sim no, Nyob rau hauv Voltage, Residual Tam sim no, Kev Tiv Thaiv Kev Tiv Thaiv, Kev Tiv Thaiv Tawm, Short Circuit, Tshaj Kub, thiab lwm yam.

Peb lub tsheb roj teeb them taw tes yog lub chaw nres tsheb them nyiaj uas siv cov cuab yeej siv siab heev los muab kev pom zoo tshaj plaws rau EVs. Qhov chaw nres tsheb tau nruab nrog ntau qhov chaw them nyiaj, suav nrog DC them ceev ceev thiab Theem 2 them. Qhov no tso cai rau kev them nyiaj sai thiab ua tau zoo, txawm tias koj muaj lub tsheb zoo li cas.

Lub chaw nres tsheb them nyiaj yog sleek thiab niaj hnub saib, nrog rau cov qauv tsim thiab huab cua-resistant rau sab nraum zoov lossis sab hauv tsev. Lub chaw nres tsheb tau nruab nrog lub vijtsam LCD rau kev ua haujlwm yooj yim, muab cov neeg tsav tsheb nkag mus rau lub sijhawm them nyiaj thiab cov ntaub ntawv them nyiaj.

Ib qho ntawm cov yam ntxwv tseem ceeb ntawm Peb lub tsheb roj teeb them taw tes yog nws qhov ceev. Nrog DC them ceev ceev, cov neeg tsav tsheb tuaj yeem them lawv lub tsheb mus rau 80 feem pua ​​​​muaj peev xwm hauv tsawg dua 30 feeb, ua rau nws zoo tagnrho rau kev mus los ntev. Lub chaw nres tsheb kuj tseem nta Theem 2 them, uas haum rau feem ntau EVs thiab muab cov kev paub zoo tshaj plaws.

Cov khoom yog tsim los nrog kev nyab xeeb hauv siab, muaj cov txheej txheem kev nyab xeeb los tiv thaiv overcharging thiab overheating. Lub chaw nres tsheb tseem muaj teeb pom kev zoo nrog LED teeb kom nws yooj yim nrhiav thaum hmo ntuj, thiab nws cov qauv tsim kom ntseeg tau tias nws tuaj yeem tiv taus txhua yam huab cua.

Peb lub tsheb roj teeb them cov ntsiab lus ua tau raws li cov qauv kev nyab xeeb uas xav tau, suav nrog cov teeb tsa los ntawm National Electric Code (NEC) thiab International Electrotechnical Commission (IEC). Qhov chaw nres tsheb yog UL tau ntawv pov thawj, txhais tau tias nws tau dhau los ua kev sim nruj rau kev nyab xeeb thiab kev ntseeg tau.

Peb lub tsheb roj teeb them taw tes yog tsim los kom yooj yim thiab kho tau, tso cai rau cov neeg tsav tsheb xaiv lawv txoj kev them nqi thiab kev them nyiaj. Cov neeg tsav tsheb tuaj yeem xaiv them los ntawm lub xov tooj ntawm tes lossis daim npav rho nyiaj, thiab chaw nres tsheb yuav pib thiab nres qhov kev them nqi thaum them nyiaj raug lees paub.

Peb lub tsheb roj teeb them taw tes yog qhov zoo tagnrho rau cov neeg tsav tsheb uas xav tau kev them nyiaj sai thiab muaj txiaj ntsig zoo thaum mus. Nws yog qhov tsim nyog rau ntau qhov chaw, suav nrog kev loj, chaw nres tsheb, khw muag khoom, tshav dav hlau, thiab lwm yam. Nrog nws cov qauv tsim thiab huab cua-resistant, nws tuaj yeem tiv taus kev siv rugged hauv txhua qhov kev nyab xeeb.

Cim npe nrov: Tuam Tshoj tsheb roj teeb them point manufacturers, hoobkas
