3.5 Kw Ac Fast Charging Wallbox



Lub 3.5 kW ac fast charging wallbox yog ib qho kev ua tau zoo heev thiab muaj txiaj ntsig zoo rau cov tsheb fais fab. Nws yog tsim los muab kev pab them nqi ceev thiab txhim khu kev qha rau cov tswv EV. Lub charger yog ib qho yooj yim rau nruab thiab tuaj nruab nrog ntau yam ntawm cov yam ntxwv siab heev kom ntseeg tau tias qhov yooj yim tshaj plaws thiab kev ua haujlwm.



Peb 3.5 kW ac fast charging wallbox yog ib qho kev ua tau zoo heev thiab muaj txiaj ntsig zoo rau cov tsheb fais fab. Nws muaj ntau yam kev tshaj lij thiab cov qauv kev nyab xeeb, nrog rau ntau yam kev them nqi thiab kev xaiv them nyiaj, ua rau nws yog qhov kev daws teeb meem zoo tshaj plaws rau pej xeem thiab ntiag tug. Nrog nws cov kev them nyiaj ceev ceev thiab yooj yim-rau-siv interface, lub charger yog cov tswv yim thiab kev daws teeb meem zoo rau EV cov tswv thiab cov neeg tsav nkoj.



TSIS MUAJ	Tsis muaj	3.5kw ac ceev them lub thawv
Kev Xav Tau
1	EV Charger Hom	AC
2	Charger Peev Xwm	3.5 KW TSI	7 kWm	11 kWm	22 kWm
3	Khoom Model NO.	ENC-ACB/L003P5A-S ANSI-ACB/L003P5A-S	ENC-ACB/L007A-S ANSI-ACB/L007A-S	ENC-ACB/L011A-S ANSI-ACB/L011A-S	ENC-ACB/L022A-S
4	Mounting	Phab ntsa-Mounted/Kem Hom
Input Requirements
5	AC Supply System	Ib-theem, 3 Hlau AC system		Ib-theem, 3 Hlau AC system (ANSI) Peb-theem, 5 Hlau AC system (ENC)
6	Nominal input voltage	AC220V ± 15% (ENC) AC240V ± 15% (ANSI)		AC380V ± 15% (ENC) AC240V ± 15% (ANSI)	AC380V ± 15%.
7	Input zaus	50 ± 3 Hz
Environmental Requirements
8	Ambient Kub Ntau yam	-25 rau 55 degree
9	Ambient Humidity	5 rau 95 feem pua
10	Cia Kub	-40 rau 70 degree
Mechanical Requirements
11	Kev ntsuas IP	IP 55
12	Txias	Ntuj Txias
Cov kev xav tau
13	Number of Outputs	1
14	Hom Txhua Qhov Tso Tawm	AC220V ± 15% (ENC) AC240V ± 15% (ANSI)		AC380V ± 15% (ENC) AC240V ± 15% (ANSI)	AC380V ± 15%.
15	Single Output Max. Tam sim no	16 amp	32 amp ua	16 amp / 50 amp	32 amp ua
User Interface & Display Requirements
16	Zaub & Kov-Screen Loj	4.3 nti kov npo
17	User Authentication	Mobile Application lossis User Interface / QR Code / RFID Card / Password ID nkag mus
18	Cov ntaub ntawv ntsuas	Cov Khoom Siv Khoom Siv
Kev Sib Txuas Lus
19	Kev sib txuas lus ntawm EVSE thiab Central Server	OCPP 1.6J raws tu qauv (yeem)
20	Interface ntawm Charger thiab CMS	Ethernet / 3G / 4G / WIFI (Yeem)
Kev Tiv Thaiv & Kev Tiv Thaiv Kev Nyab Xeeb
21	Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772, thiab lwm yam.
22	Safety Parameters	Tshaj tam sim no, Nyob rau hauv Voltage, Residual Tam sim no, Kev Tiv Thaiv Kev Tiv Thaiv, Kev Tiv Thaiv Tawm, Short Circuit, Tshaj Kub, thiab lwm yam.

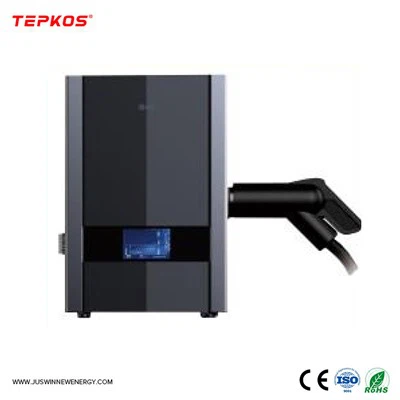

Peb lub 3.5 kW ac fast charging wallbox yog phab ntsa-mounted charging chaw nres tsheb uas muaj lub zog them hluav taws xob txog li 3.5 kW. Lub chaw nres tsheb them nyiaj yog tsim los ua haujlwm nrog ntau lub tsheb hluav taws xob, ua kom muaj ntau yam thiab siv tau los daws teeb meem rau pej xeem thiab ntiag tug.



Lub charger nta tus qauv zoo nkauj thiab niaj hnub, nrog rau qhov loj me thiab kev tsim kho kom yooj yim installation thiab txij nkawm. Lub charger yog nruab nrog LED zaub uas muab cov ntaub ntawv ntawm lub sijhawm them nyiaj, lub zog tso zis, thiab lwm yam ntsiab lus tseem ceeb rau cov neeg siv.



Peb 3.5 kW ac fast charging wallbox los nruab nrog ntau yam ntawm cov yam ntxwv siab heev los txhim kho nws cov kev ua tau zoo thiab kev siv tau. Qee qhov tseem ceeb ntawm lub charger muaj xws li:



1. Ntau yam kev xaiv them nqi - Lub charger yog tsim los ua haujlwmnrog rau ntau yam ntawm cov tsheb hluav taws xob, ua rau nws ua tau zoo thiab hloov pauv kev daws teeb meem rau pej xeem thiab ntiag tug.



2. Fast Charging Speed ​​- Lub charger muab lub zog them tawm mus txog 3.5 kW, kom ntseeg tau tias kev them nyiaj ceev thiab ua tau zoo rau cov tswv EV

3. Yooj yim rau siv thiab nruab - Lub charger yog tsim los ua kom yooj yim rau kev siv thiab nruab, nrog rau cov neeg siv-phooj ywg interface thiab lub teeb yuag.



4. Advanced Safety Features - Lub charger los nruab nrog cov yam ntxwv kev nyab xeeb siab heev los tiv thaiv ob qho tib si EV thiab lub charger los ntawm kev puas tsuaj lossis ua haujlwm tsis zoo.



5. Smart Management System - Lub charger muaj cov kev tswj xyuas ntse uas tso cai rau kev saib xyuas cov chaw taws teeb, teem caij, thiab tshaj tawm kom ua tau zoo tshaj plaws thiab yooj yim.



Peb 3.5 kW ac fast charging wallbox yog tsim thiab tsim kom muaj kev nyab xeeb siab tshaj plaws thiab cov qauv zoo, ua kom muaj kev nyab xeeb siab tshaj plaws thiab kev ntseeg siab rau cov neeg siv khoom. Lub charger tau ntawv pov thawj kom ua tau raws li tag nrho cov qauv kev nyab xeeb, suav nrog UL, CE, thiab RoHS cov ntawv pov thawj.



Peb 3.5 kW ac fast charging wallbox txhawb ntau qhov kev them nqi thiab kev them nyiaj rau kev yooj yim tshaj plaws thiab yooj yim. Lub charger tuaj yeem siv nrog ntau qhov kev them nyiaj, suav nrog RFID cards, mobile apps, thiab credit / debit cards. EV cov tswv tseem tuaj yeem xaiv them cov kev pabcuam them nqi los ntawm kev tso npe lossis tus qauv them raws li koj mus.



Peb 3.5 kW ac fast charging wallbox yog qhov zoo tagnrho rau ntau yam ntawm daim ntawv thov scenarios, suav nrog:



1. Cov Chaw Them Nqi Pej Xeem - Lub charger yog tsim los muab kev pab them nqi ceev thiab txhim khu kev qha rau cov chaw them nqi rau pej xeem, xws li chaw nres tsheb, chaw yuav khoom, thiab chaw nres tsheb ntawm txoj kev.



2. Cov Chaw Them Nqi Ntiag Tug - Lub charger kuj yog ib qho kev daws teeb meem zoo tshaj plaws rau cov chaw them nyiaj ntiag tug, xws li cov tsev nyob lossis cov tsev lag luam, qhov chaw EV cov tswv xav tau kev pab them nqi ceev thiab yooj yim.



3. Fleet Charging Solutions - Rau cov tswv nkoj uas muaj ntau lub tsheb hluav taws xob, 3.5kW AC Fast Charging Wallbox tuaj yeem muab cov kev daws teeb meem zoo thiab siv tau zoo, cia cov tsheb thauj mus los tau them sai sai thiab yooj yim.
