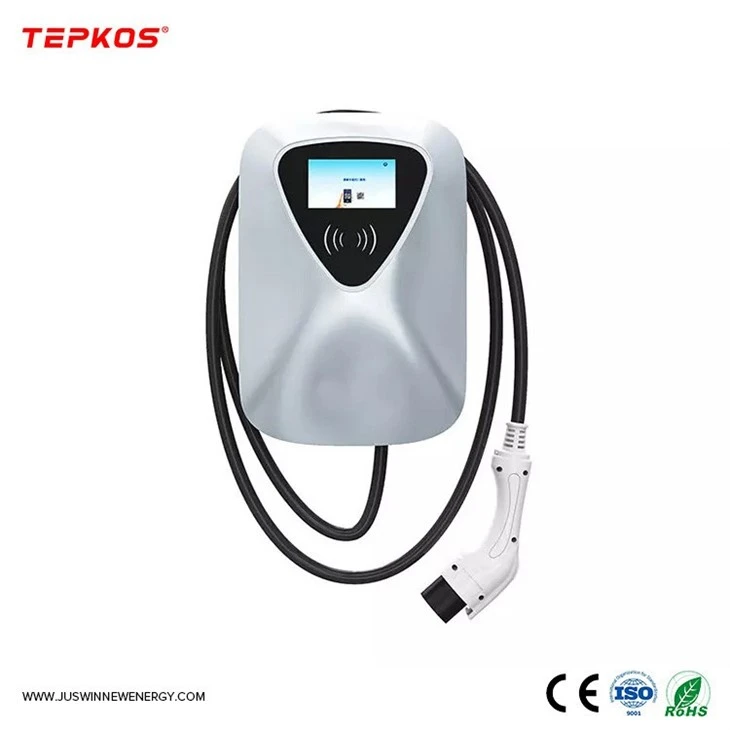

Electric Tsheb Charger Phab ntsa Box

Peb lub tsheb fais fab phab ntsa lub thawv charger yog qhov chaw nres tsheb zoo nkauj thiab txav tau yooj yim, nws muaj lub siab amperage, max 22kw fais fab tso zis tso cai rau nws kom them lub tsheb sai dua li lwm cov chargers. Nws tseem muaj lub vijtsam LCD uas qhia txog kev nce qib ntawm lub voj voog them nyiaj. Tsis tas li ntawd, lub charger yog huab cua-resistant, yog li koj tuaj yeem nruab nws sab nraud yam tsis muaj kev ntshai ntawm kev puas tsuaj. Lub charger kuj sib xws nrog ntau hom hluav taws xob tsheb, ua kom muaj ntau yam thiab yooj yim.

Xa kev nug

Khoom Taw qhia

Cov khoom qhia

Raws li lub ntiaj teb paub ntau ntxiv ntawm ib puag ncig, peb tab tom pom kev hloov pauv ntawm cov tsheb ib txwm muaj thiab mus rau lwm txoj kev daws teeb meem, xws li tsheb hluav taws xob, qhov ntawd yog qhov chaw hluav taws xob tsheb charger phab ntsa los rau hauv.

Peb lub tsheb fais fab phab ntsa lub thawv charger yog sleek, thiab ruaj khov, lub charger yog tsim los ua raws li cov qauv kev nyab xeeb nruj, lav kev nyab xeeb ntawm lub tsheb fais fab thiab nws tus tswv.

electric car charger wall box

Khoom Parameters

TSIS MUAJ	Tsis muaj	Electric Tsheb Charger Phab ntsa Box
Kev Xav Tau
1	EV Charger Hom	AC
2	Charger Capacity	7 kWm	11 kWm	22 kWm
3	Khoom Model NO.	ENC-ACB/L007A-S ANSI-ACB/L007A-S	ENC-ACB/L011A-S ANSI-ACB/L011A-S	ENC-ACB/L022A-S
4	Mounting	Phab ntsa-Mounted/Kem Hom
Input Requirements
5	AC Supply System	Ib-theem, 3 Hlau AC system	Ib-theem, 3 Hlau AC system (ANSI) Peb-theem, 5 Hlau AC system (ENC)
6	Nominal input voltage	AC220V ± 15% (ENC) AC240V ± 15% (ANSI)	AC380V ± 15% (ENC) AC240V ± 15% (ANSI)	AC380V ± 15%
7	Input zaus	50 ± 3 Hz
Environmental Requirements
8	Ambient Kub Ntau yam	-25 rau 55 degree
9	Ambient Humidity	5 mus rau 95%
10	Cia Kub	-40 rau 70 degree
Mechanical Requirements
11	Kev ntsuas IP	IP 55
12	Txias	Ntuj Txias
Cov kev xav tau
13	Number of Outputs	1
14	Hom Txhua Qhov Tso Tawm	AC220V ± 15% (ENC) AC240V ± 15% (ANSI)	AC380V ± 15% (ENC) AC240V ± 15% (ANSI)	AC380V ± 15%
15	Single Output Max. Tam sim no	32 amp ua	16 amp / 50 amp	32 amp ua
User Interface & Display Requirements
16	Zaub & Kov-Screen Loj	4.3 nti kov npo
17	User Authentication	Mobile Application lossis User Interface / QR Code / RFID Card / Password ID nkag mus
18	Cov ntaub ntawv ntsuas	Cov Khoom Siv Khoom Siv
Kev Sib Txuas Lus
19	Kev sib txuas lus ntawm EVSE thiab Central Server	OCPP 1.6J raws tu qauv (yeem)
20	Interface ntawm Charger thiab CMS	Ethernet / 3G / 4G / WIFI (Yeem)
Kev Tiv Thaiv & Kev Tiv Thaiv Kev Nyab Xeeb
21	Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772, thiab lwm yam.
22	Safety Parameters	Tshaj tam sim no, Nyob rau hauv Voltage, Residual Tam sim no, Kev Tiv Thaiv Kev Tiv Thaiv, Kev Tiv Thaiv Tawm, Short Circuit, Tshaj Kub, thiab lwm yam.

Khoom Paub meej

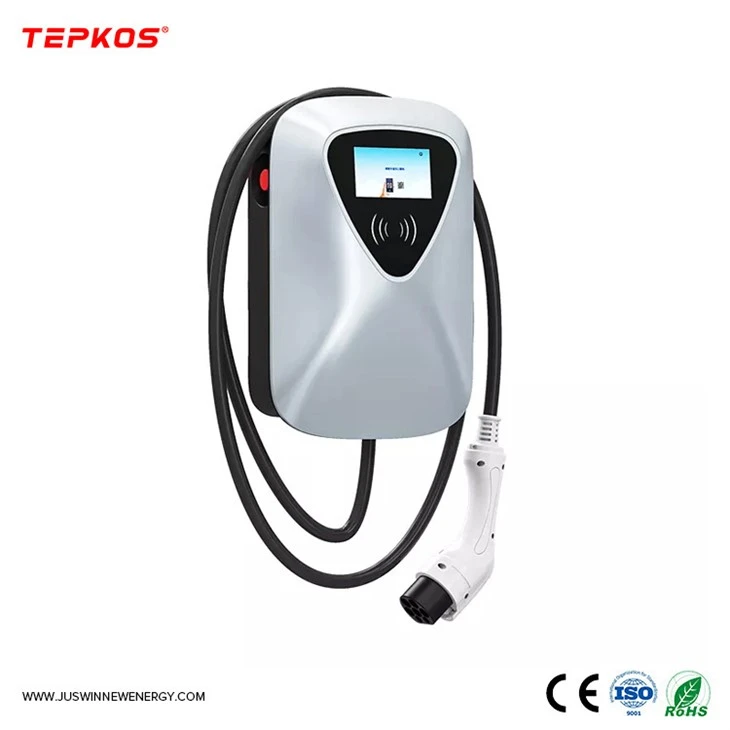

Details of electric car charger wall box

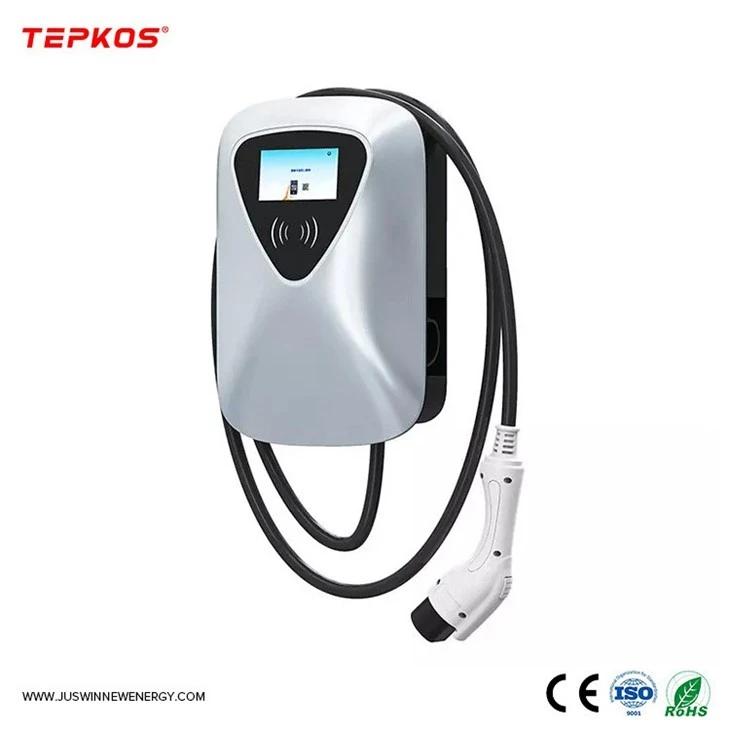

Charger connector of electric car charger wall box

Kev nyab xeeb nta

Peb lub tsheb fais fab phab ntsa charger yog tsim thiab ua raws li cov qauv kev nyab xeeb nruj. Nws los nruab nrog ntau yam kev nyab xeeb xws li kev tiv thaiv hluav taws xob, kev tiv thaiv overcurrent, thiab kev tiv thaiv overvoltage, kom ntseeg tau tias koj lub tsheb hluav taws xob thiab cov khoom siv them nyiaj nyob ruaj ntseg thaum siv nws.

Safety feature of electric car charger wall box

Khoom Dimension Thiab Feature

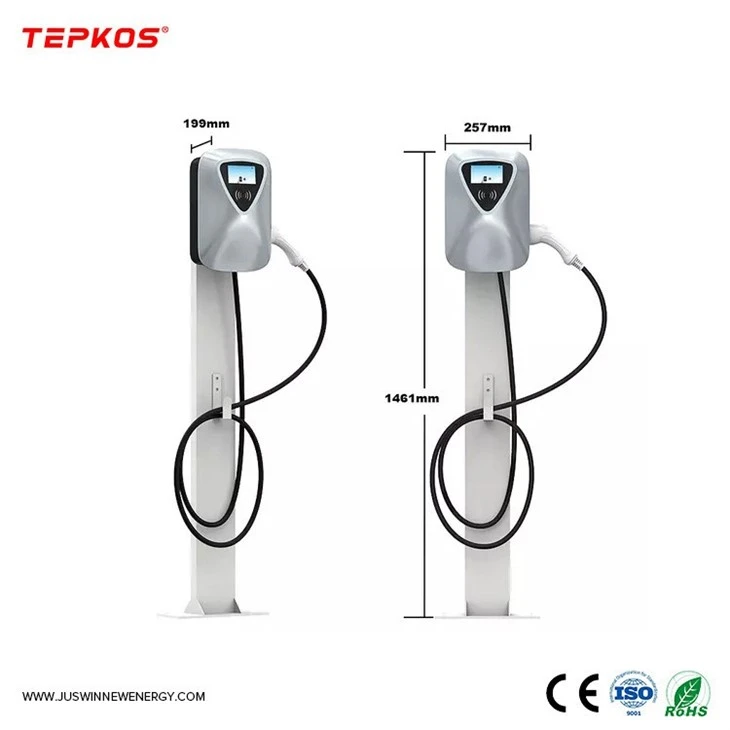

Dimension of electric car charger wall box

Cov neeg siv khoom duab

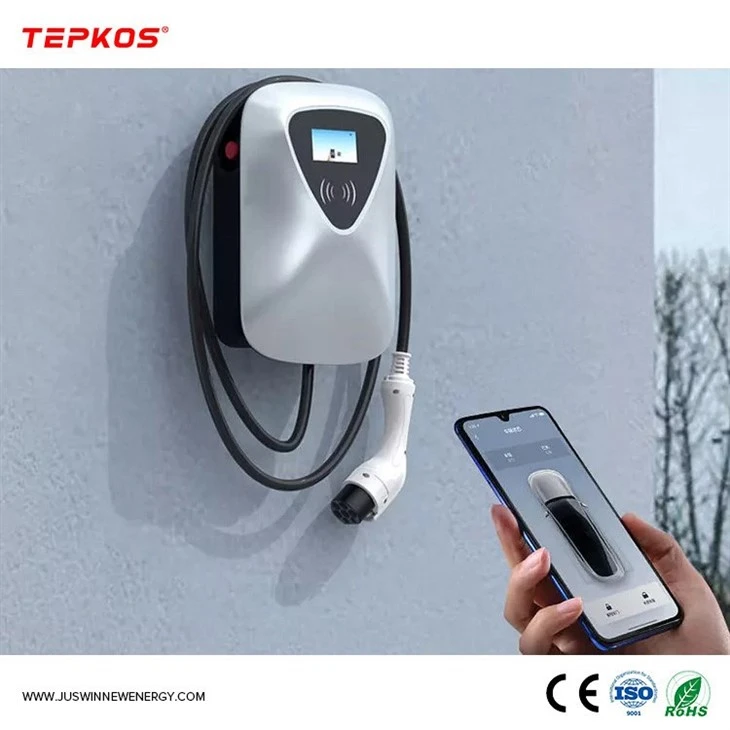

Peb lub tsheb fais fab phab ntsa lub thawv charger muaj ntau yam kev siv. Lawv zoo meej rau cov tswv tsev nrog lub tsheb fais fab. Lawv kuj muab cov kev daws teeb meem them nyiaj rau cov lag luam uas muaj cov tsheb fais fab. Ntxiv mus, lawv muaj txiaj ntsig zoo rau chaw nres tsheb, tsev so, tshav dav hlau, thiab lwm yam lag luam uas ua rau cov tswv tsheb hluav taws xob.

Application of electric car charger wall box
