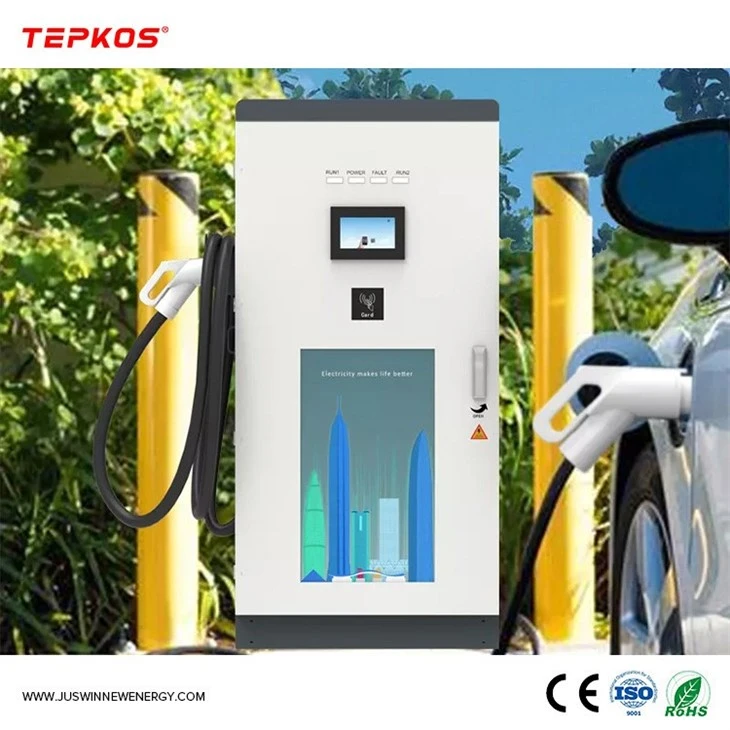

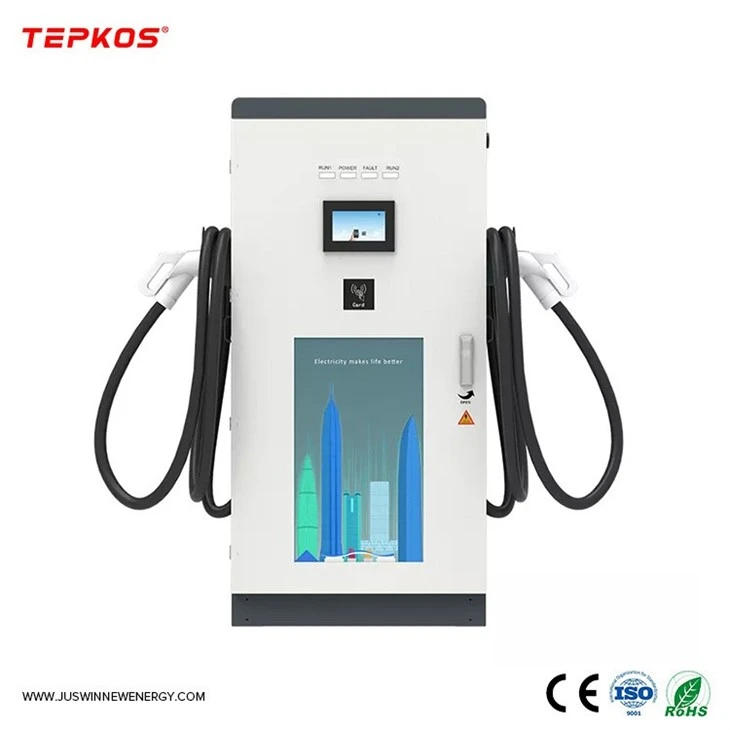

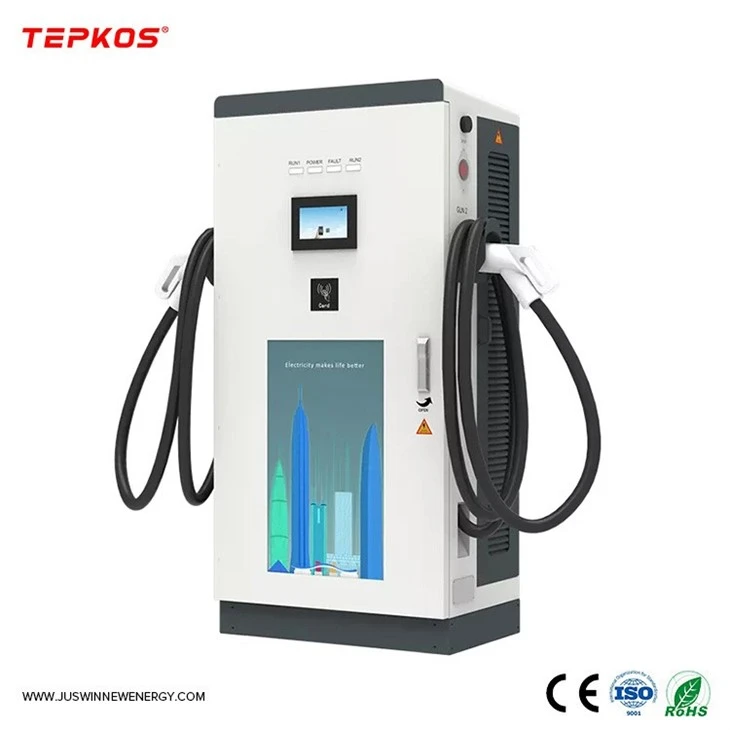

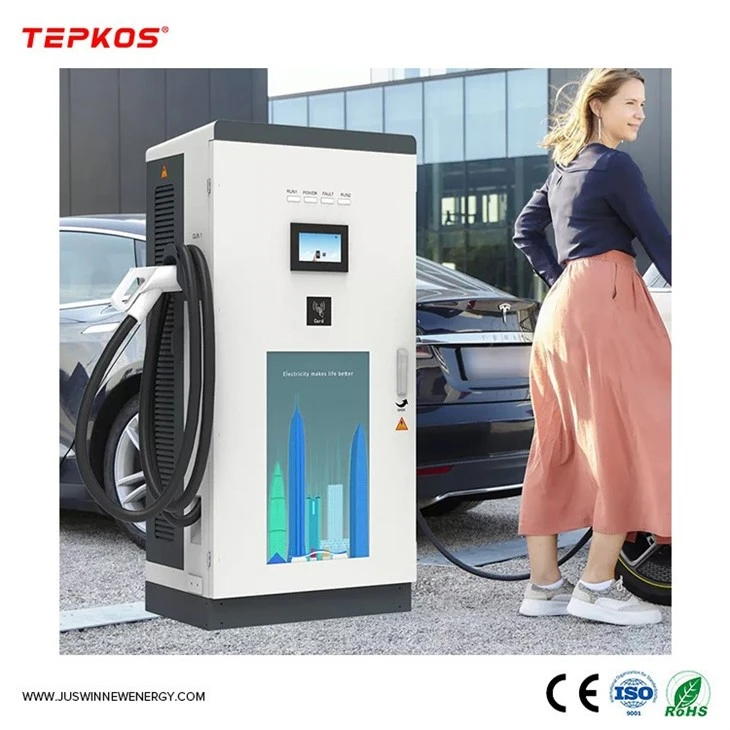

Theem 3 Ev Charger Chaw nres tsheb
Theem 3 EV charger chaw nres tsheb yog ib qho kev daws teeb meem zoo heev yog tias koj tab tom nrhiav kom txaus siab rau qhov tsis muaj teeb meem thiab them ceev ceev rau koj EV. Lawv tau nruab nrog cov yam ntxwv siab heev uas txhim kho lawv cov kev ua tau zoo, thiab ua tau raws li cov qauv kev nyab xeeb siab tshaj plaws. Theem 3 EV charger chaw nres tsheb tso cai rau cov tswv ntawm EV kom txaus siab rau qhov kev sib txuas ntawm kev them nyiaj thiab ua kom yooj yim dua kom muaj lub tsheb fais fab. Nrog rau kev txais yuav ntau dua ntawm EVs, Theem 3 EV charger chaw nres tsheb yog txoj hauv kev rau yav tom ntej.
Khoom Taw qhia
Cov khoom qhia
Theem 3 EV charger chaw nres tsheb yog qhov tseeb tshaj plaws ntawm EV cov kev daws teeb meem. Nrog rau qhov tseem ceeb ntawm cov tswv cuab ntawm EV ntau xyoo, Theem 3 EV charger chaw nres tsheb muab txoj hauv kev txhim khu kev qha ntawm kev them nyiaj ceev EVs rau kev tsav tsheb tsis muaj teeb meem. Lawv tau nruab nrog cov yam ntxwv siab heev uas txhim kho lawv cov kev ua tau zoo, thiab ua tau raws li cov qauv kev nyab xeeb siab tshaj plaws. Nrog rau kev txais yuav ntau dua ntawm EVs, Theem 3 EV charger chaw nres tsheb yog txoj hauv kev rau yav tom ntej.
Khoom Parameters
| Lub npe | Theem 3 Ev Charger Chaw nres tsheb |
| Hwj chim | 160KW/180KW/240KW TSI |
| Txuas | IB/OB (CCS-1/CCS-2/CHAdeMO/GBT) |
| Input voltage ntau | 380V ± 15% (3-Phase) |
| Output voltage ntau | 200-750Vdc |
| Output tam sim no ntau yam | 0-200A/ib qho txuas |
| Kev sib txuas lus | Ethernet / 3G / 4G / WIFI (Yeem) |
| Zaub | 7 nti kov npo |
| Txhawb nqa | PAB 1.6 |
| Kev ntsuas IP | IP54 |
| Ua haujlwm Temp. | -25-55 degree Installation |
| Kev teeb tsa | Pem teb hom |
Khoom Paub meej
Cov khoom siv hluav taws xob tau zoo thiab qib siab EV no muaj peev xwm xa tawm ntau dua li cov khoom siv hluav taws xob Theem 2, uas feem ntau pom hauv tsev thiab qhov chaw pej xeem. Cov txheej txheem them nyiaj tau ua sai dua nrog Theem 3 EV chargers thaum peb muab hluav taws xob tam sim no ntawm qhov hluav taws xob ntau dua, feem ntau nyob ib puag ncig 400V thiab tam sim no txog li 240kW.
Qib 3 EV charger chaw nres tsheb tau tsim kom muaj txiaj ntsig zoo thiab tuaj yeem them EVs hauv lub sijhawm luv tshaj plaws. Lawv kuj tau nruab nrog cov tshuab cua txias siab heev uas tswj qhov ntsuas kub kom ntseeg tau tias lub charger tsis overheat lossis puas lub roj teeb. Tsis tas li ntawd, cov chargers no tuaj nrog tus neeg siv-phooj ywg interface uas coj koj los ntawm cov txheej txheem them nyiaj.
Theem 3 EV charger chaw nres tsheb kuj tau tsim los kom haum rau ntau hom ntsaws, uas yog qhov tseem ceeb vim tias muaj ntau lub tsheb fais fab thiab plug-in hybrids hauv khw.
Kev nyab xeeb nta
Kev nyab xeeb yog ib qho tseem ceeb heev nrog Theem 3 EV charger chaw nres tsheb. Cov chav no feem ntau ua nrog cov khoom siv hluav taws kub uas tuaj yeem tiv taus qhov kub thiab txias thiab kav ntev. Lawv kuj tau nruab nrog ntau yam kev tiv thaiv, xws li overcurrent thiab overvoltage tiv thaiv nrog rau kev ruaj ntseg disconnects. Ntxiv mus, nyob rau hauv qhov tsis zoo tshwm sim ntawm qhov teeb meem ntawm hluav taws xob los yog kev puas tsuaj rau lub charger, qhov chaw nres tsheb yog tsim los kaw cia, ntxiv txo qhov kev pheej hmoo ntawm hluav taws kub los yog tawg.
Khoom Dimension
Daim ntawv thov
Qib 3 EV charger chaw nres tsheb yog qhov zoo tagnrho rau ntau daim ntawv thov, suav nrog cov khoom lag luam thiab thaj chaw, thaj chaw pej xeem, thiab txoj kev loj. Lawv muab cov kev daws teeb meem zoo thiab txhim khu kev qha rau cov tswv EV, tshwj xeeb tshaj yog cov uas xav tau them lawv lub tsheb sai sai thaum lawv taug kev deb. Cov chaw pej xeem xws li cov khw, cov chaw hauv zej zog, tshav dav hlau, thiab chaw tsheb ciav hlau tuaj yeem tau txais txiaj ntsig los ntawm kev teeb tsa cov chargers no vim lawv nyiam cov tswv EV, uas qee zaum yuav tsum tau them nyiaj sai.
Ntim thiab xa khoom
